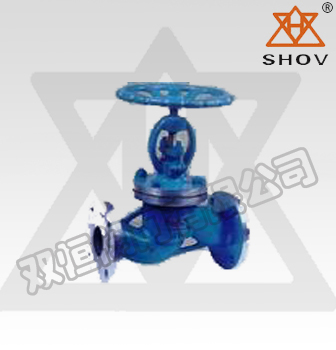

| 鉻鉬鋼高溫截止閥 |
|
鉻鉬鋼高溫截止閥
| 公稱通徑DNNominaldiameter |
主要外形尺寸和連接尺寸（mm）Mainexternalandconnectingdimensions |
重量（kg）Weight |
| L |
D |
D1 |
D2 |
b |
f |
z-d |
H |
D0 |
| J41(H.Y.B)-16C J41Y-16I |
| 10 |
130 |
90 |
60 |
40 |
14 |
2 |
4-14 |
198 |
120 |
4.7 |
| 15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-14 |
218 |
120 |
5.2 |
| 20 |
150 |
105 |
75 |
55 |
16 |
2 |
4-14 |
258 |
140 |
7.1 |
| 25 |
160 |
115 |
85 |
65 |
16 |
2 |
4-14 |
275 |
160 |
7.4 |
| 32 |
180 |
135 |
100 |
78 |
18 |
2 |
4-18 |
280 |
180 |
8.5 |
| 40 |
200 |
145 |
110 |
85 |
18 |
3 |
4-18 |
330 |
200 |
12.5 |
| 50 |
230 |
160 |
125 |
100 |
18 |
3 |
4-18 |
350 |
240 |
20 |
| 65 |
290 |
180 |
145 |
12 |
18 |
3 |
4-18 |
400 |
280 |
25 |
| 80 |
310 |
195 |
160 |
135 |
20 |
3 |
8-18 |
355 |
280 |
35 |
| 100 |
350 |
215 |
180 |
155 |
22 |
3 |
8-18 |
415 |
320 |
50 |
| 125 |
400 |
245 |
210 |
185 |
24 |
3 |
8-18 |
460 |
360 |
75 |
| 150 |
480 |
280 |
240 |
210 |
24 |
3 |
8-23 |
510 |
400 |
100 |
| 200 |
600 |
335 |
295 |
265 |
26 |
3 |
12-23 |
710 |
400 |
210 |
| 250 |
650 |
405 |
355 |
320 |
30 |
3 |
12-23 |
786 |
450 |
446 |
| 300 |
750 |
460 |
410 |
375 |
30 |
3 |
12-23 |
925 |
500 |
648 |
使用范圍
Scopeofuse
| 產品類型Productclassification |
適用介質Suitablemedium |
適用溫度（℃）Suitabletemperature |
J41(H.Y)-C型
J941(H.Y)-C型 |
水、蒸汽、油品Water,steam,oilgoods |
≤425℃
≤450℃ |
|
|
|
|
|
|
J41Y-I型
J941Y-I型 |
水、蒸汽、油品Water,steam,oilgoods |
≤550℃ |
|
|
|
|
|
